Replaces OEM part numbers: 7FP9-0406
Associated Manufacturers
Description

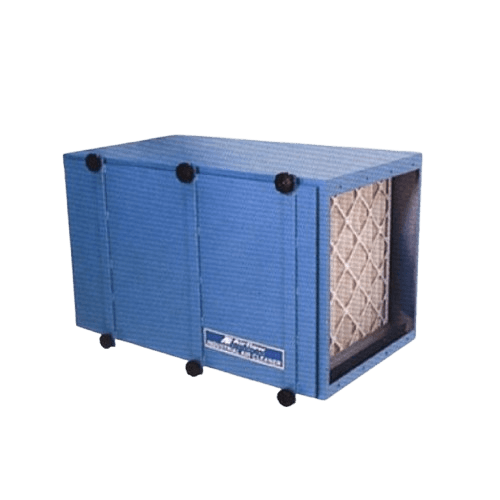

Genuine Airflow Systems 7FP9-0406 box filter: 95% (MERV 14), 10" x 20" x 6", fiberglass media in a metal frame. Airflow Systems lists the 7FP9-0406 as the 95% main filter, with 14 sq ft of media, on the Model 65 and the MistPac (MistPak v2.0); each unit takes one. On the Model 65 it sits behind 2" and 1" aluminum mesh pre-filters. On the MistPac it follows a 2" impingement pre-filter (or, with the CHEVRON option, the 2AF4-7100 CHEVRON impingement filter, SKU 50720) and a 1" aluminum mesh pre-filter. Units built with the internal HEPA or absorber option use that filter in its place. Specifications: • Part number: 7FP9-0406 • Size: 10 x 20 x 6 in. • Efficiency: 95% (MERV 14) • Media: fiberglass, 14 sq ft • Frame: metal • Temperature rating: 200°F • Stage: main filter Fits: • Airflow Systems Model 65 • Airflow Systems MistPac (v2.0) Airflow Systems also lists the 10 x 20 x 2 pleated pre-filter 7FP3-0402 (SKU 50873) for both units. Seat it fully so the frame seals all around, and replace it when your gauge reaches the change point, airflow drops, or mist or smoke shows at the discharge.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 10x20x6 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FP9-0406 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Metal |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 14 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
