Replaces OEM part numbers: 7FP9-5401
Associated Manufacturers
Description

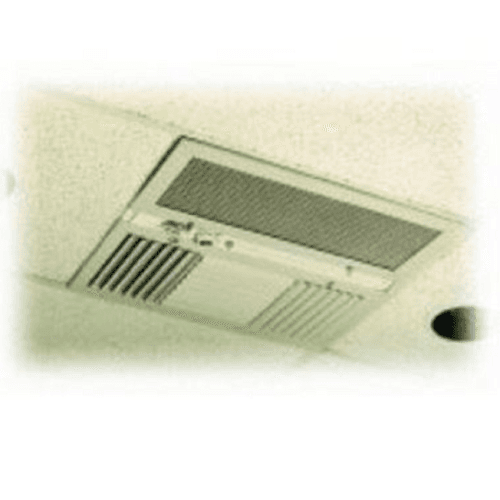

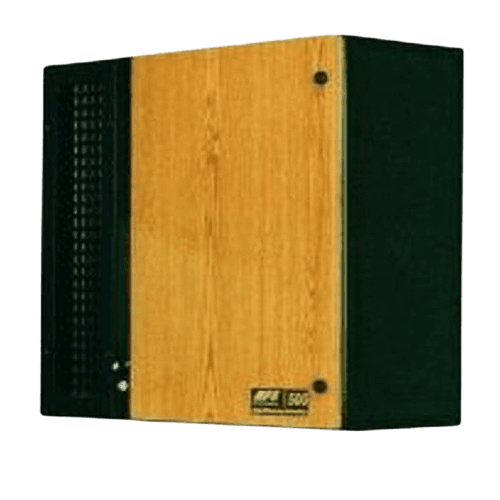

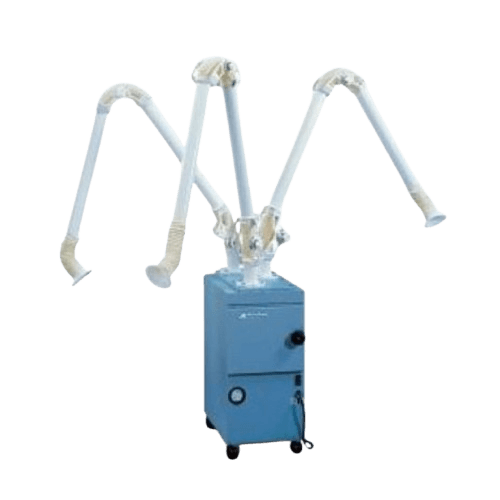

Replacement for Airflow Systems 7FP9-5401: 95% (MERV 14) box filter, 10" x 20" x 6", 14 sq ft of fiberglass media in a metal frame. Airflow Systems lists the 7FP9-5401 as the 95% main filter, with 14 sq ft of media, for the Model 500, FM600, FM1000, desktop Fume Booth and Mini-Vac. This replacement matches that size, efficiency and media area. The genuine 7FP9-5401 (SKU 51032) has a cardboard frame; this one has a metal frame. Specifications: • Size: 10 x 20 x 6 in. • Efficiency: 95% (MERV 14) • Media: fiberglass, 14 sq ft • Frame: metal • Temperature rating: 200°F • Stage: main filter Fits: • Airflow Systems Model 500 • Airflow Systems FM600, FM1000 • Airflow Systems Fume Booth • Airflow Systems Mini-Vac Seat it fully so the frame seals all around, and replace it when your gauge reaches the change point or airflow drops.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 10x20x6 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FP9-5401 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Metal |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 14 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 14 |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
