Buying for a business? Purchase orders, invoicing and tax-exempt purchasing are available. Set up a business account
Replaces OEM part numbers: FL242422B95, 30-V55, FBA000007, 7FB9-0122
Associated Manufacturers
Description

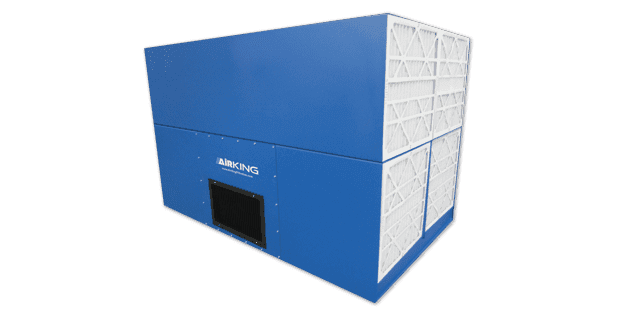

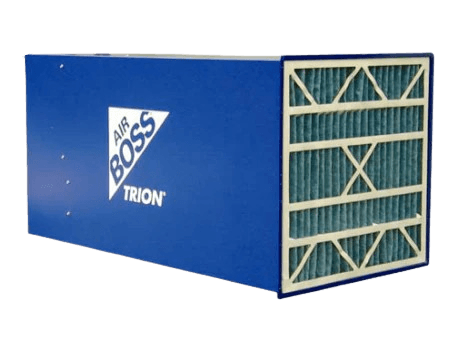

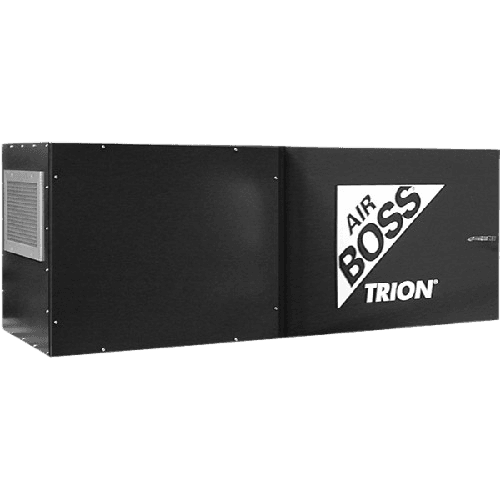

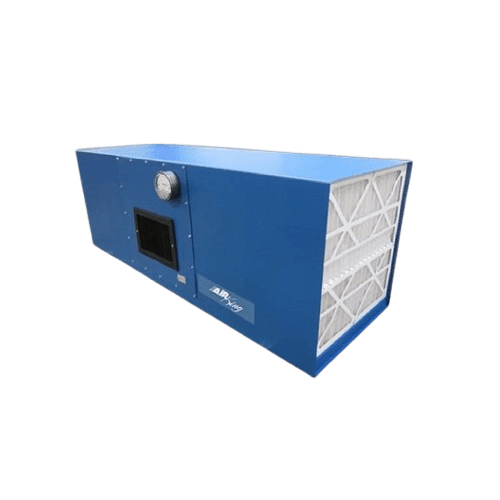

Replacement for Air King FL242422B95, Airflow Systems 7FB9-0122 and 30-V55 (RX part FBA000007): 95% (MERV 15) fiberglass bag filter, 24" x 24" x 22". For welding smoke, fine fume and fine dust, this 95% bag is the step up from a standard 45% or 65% bag of the same size. It fits the same main-filter track, so you can raise capture efficiency without changing the air cleaner. Because it captures more, it loads somewhat faster than a 65% bag, so keep the pre-filter changed. Specifications: • Size: 24 x 24 x 22 in. • Efficiency: 95% (MERV 15) • Media: fiberglass, approx. 58 sq ft • Temperature rating: 200°F • Stage: main filter Fits: • Air King M30, M30C, M70, M75 • Airflow Systems F70C, F70R, T140 • Trion M2500, M3000 Where only general dust is present, the same size comes in 65% (MERV 11, SKU 50452) and 45% (SKU 50461), which last longer between changes. Install with the pockets pointing downstream, behind the pre-filter, and replace when your gauge reaches the change point or airflow drops. Sold in packs of 2.
Specifications
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 58 |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | FL242422B95, 30-V55, FBA000007, 7FB9-0122 |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 15 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 24x24x22 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
