Replaces OEM part numbers: 7FB6-5119
Associated Manufacturers
Description

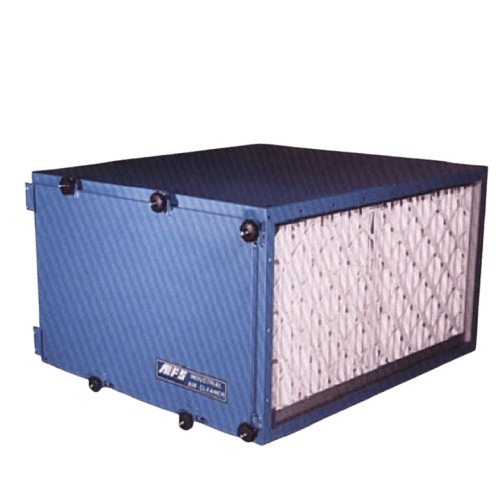

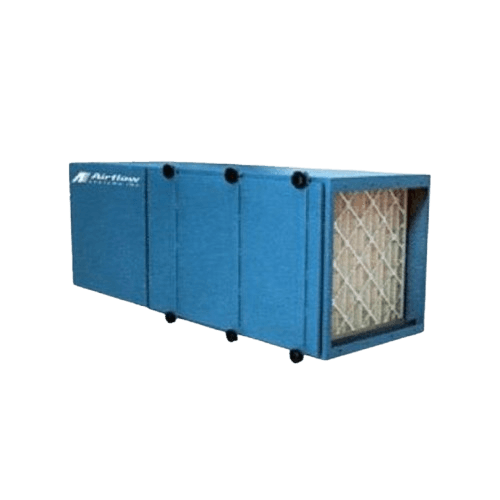

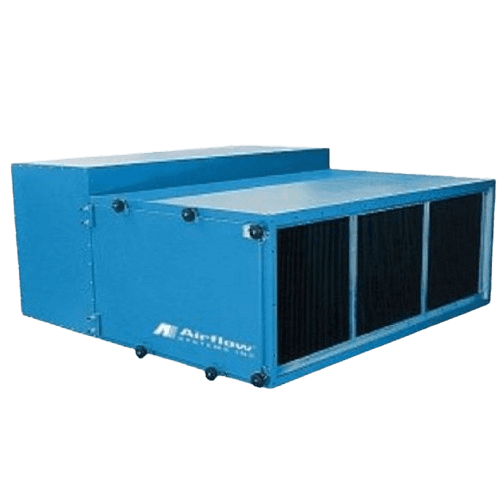

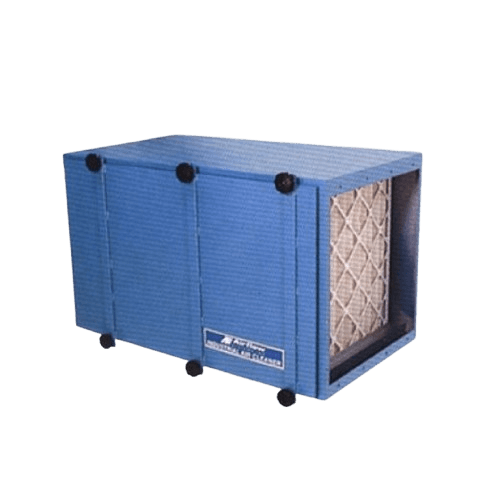

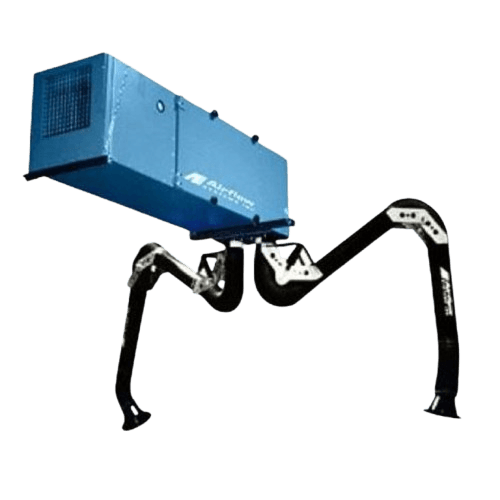

Genuine Airflow Systems 7FB6-5119 bag filter: 65% (MERV 11) short main bag, 24" x 24" x 17". The 7FB6-5119 is the standard-efficiency main bag for Airflow Systems F-series air cleaners and the 200, 202 and 203. Its 64 sq ft of fiberglass pocket media handles general airborne dust, smoke and fine particulate from fabrication and machining areas. Specifications: • Part number: 7FB6-5119 • Size: 24 x 24 x 17 in. • Efficiency: 65% (MERV 11) • Media: fiberglass, 64 sq ft • Temperature rating: 200°F • Stage: main filter Fits: • Airflow Systems F70R • Airflow Systems F120, F122, F240, F360, F480 • Airflow Systems 200, 202, 203 For heavier weld smoke, the 95% (MERV 15) bag in the same 17" depth is the 7FB9-0119 (SKU 50508). Airflow Systems makes several bag depths and efficiencies for the same 24 x 24 face, so match the part number and depth on the filter you take out. Install with the pockets pointing downstream, behind the pre-filter, and replace when your gauge reaches the change point or airflow drops. Sold in packs of 2.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 24x24x17 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FB6-5119 |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 11 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 64 |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 65 |
