Replaces OEM part numbers: 7FB9-0126
Associated Manufacturers
Description

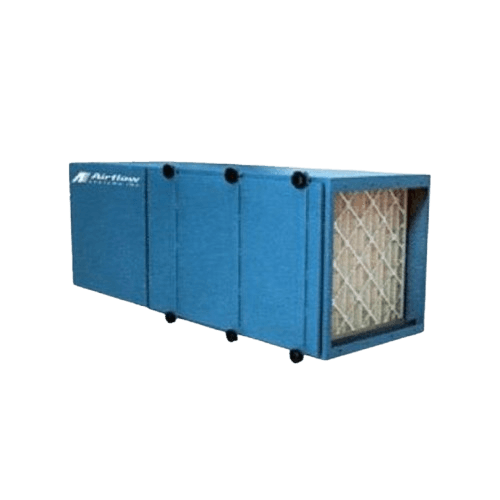

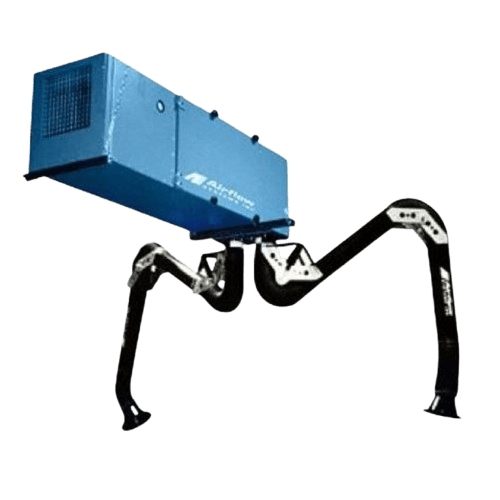

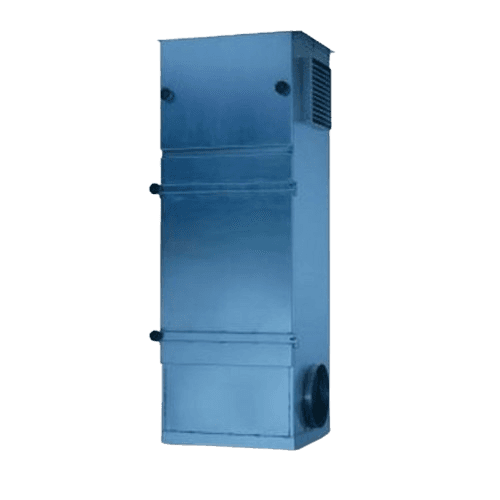

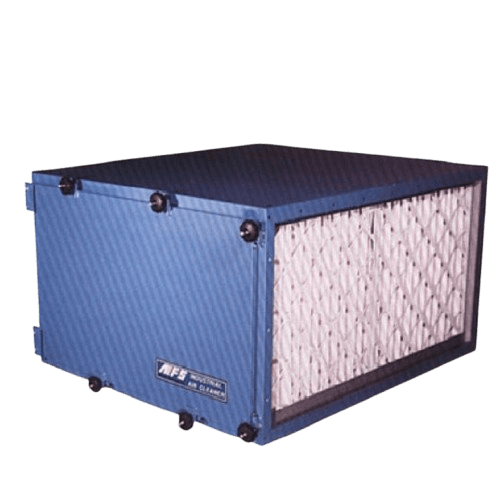

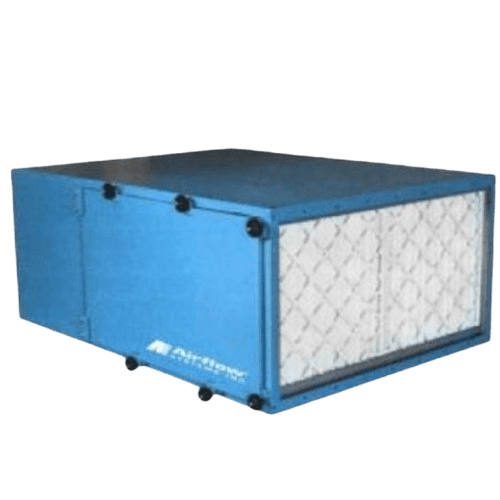

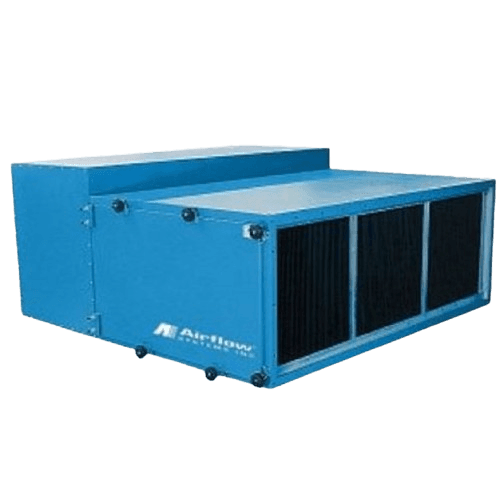

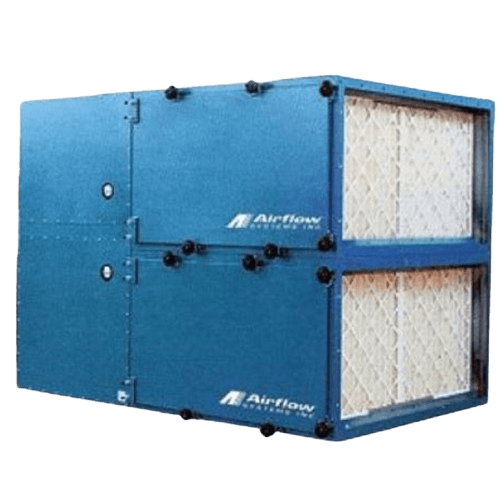

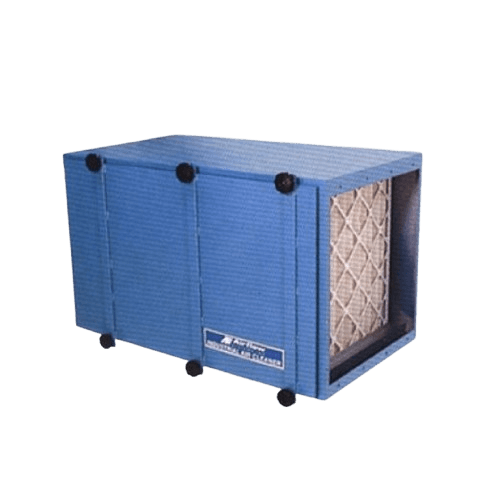

Genuine Airflow Systems 7FB9-0126 bag filter: 95% (MERV 15) fiberglass short bag, 24" x 24" x 26". The 7FB9-0126 is the 95% short bag Airflow Systems lists for its F120 through F480 air cleaners, the 200, 202 and 203, and the 2400 and 2400VOM. It has 10 fiberglass pockets with loops and 88 sq ft of media. At 95%, it is the high-efficiency choice for weld smoke, fine fume and fine dust. On the F120 through F480 and the 200, 202 and 203, Airflow Systems also uses it in the 4" HEPA option, one bag ahead of each 7FJ9-9005 HEPA mini-pleat filter (SKU 51025). Specifications: • Part number: 7FB9-0126 • Size: 24 x 24 x 26 in. • Efficiency: 95% (MERV 15) • Pockets: 10, with loops • Media: fiberglass, 88 sq ft • Temperature rating: 200°F • Stage: main filter Fits: • Airflow Systems F120, F122, F240, F360, F480 • Airflow Systems 200, 202, 203 • Airflow Systems 2400 (dry) and 2400VOM Looking for a lower-cost option? SKU 50455 is a replacement for 7FB9-0126 with the same 24 x 24 x 26 size, 95% efficiency and 10-pocket design with loops. Install with the pockets pointing downstream, behind the pre-filter, and replace all the bags in the unit together when your gauge reaches the change point or airflow drops. Price shown is per filter; sold in pairs (minimum order 2).
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 24x24x26 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FB9-0126 |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 15 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 88 |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Ends Filter Ends The design and configuration of a filter’s end caps or closures, which determine how the filter is sealed and mounted in the system. | Loops |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
