Buying for a business? Purchase orders, invoicing and tax-exempt purchasing are available. Set up a business account
Replaces OEM part numbers: 7FJ9-5112
Associated Manufacturers
Description

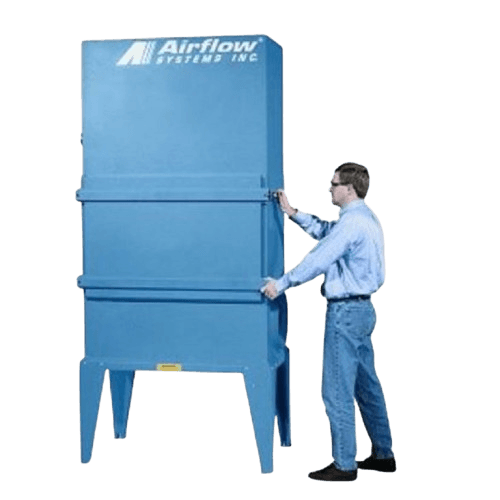

Genuine Airflow Systems 7FJ9-5112 DOP filter: 95% DOP, high capacity, 24" x 24" x 12", fiberglass media in a metal frame. Airflow Systems lists the 7FJ9-5112 as the 12" deep 95% DOP filter for the Airflow Systems units below. It is an after-filter, downstream of the unit's main filter; on some units, such as the F120, 2400, 2400 VOM and PAC91, it comes with Airflow Systems' internal or external DOP option. The MP30, MP60 and MP120 also list a 4" deep DOP filter, the 7FJ9-5005 (SKU 51030), so match the depth of the filter you take out. Specifications: • Part number: 7FJ9-5112 • Size: 24 x 24 x 12 in. • Efficiency: 95% DOP, high capacity • Media: fiberglass • Frame: metal • Temperature rating: 200°F • Stage: after-filter Fits: • Airflow Systems F120, F122, F240, F360, F480 • Airflow Systems 200, 202, 203 • Airflow Systems 2400 and 2400VOM • Airflow Systems MP30, MP60, MP120 • Airflow Systems PRO 2, PRO 3, PRO 4 • Airflow Systems PAC91 • Airflow Systems PC-2 / DC-2 (older style) The 99.97% HEPA filter in the same 24 x 24 x 12 size is 7FJ9-9113 (SKU 51026). Check your unit's manual for the number of DOP filters. Change the pre-filters and main filters on schedule to protect it, and replace it when its gauge reaches the change point or airflow drops.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 24x24x12 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FJ9-5112 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Metal |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | After |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
