Robovent EX-14D26-D12, CF-14D26; Amtech 351D66A2391 Replacement
Buying for a business? Purchase orders, invoicing and tax-exempt purchasing are available. Set up a business account
Replaces OEM part numbers
- 351D66A2391
- EX-14D26-D12
- CF-14D26
- 22611
- 10002975
- E04192
- P196121
Associated Manufacturers
Description

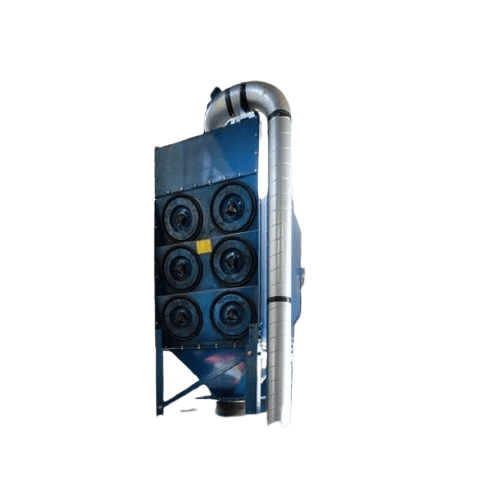

Replacement for Amtech 351D66A2391 and RoboVent EX-14D26-D12 (also written EX14D26D12) / CF-14D26: flame-retardant 80/20 cartridge filter, MERV 11. This cartridge fits Amtech AT and ATV series collectors and RoboVent collectors that use the EX-14D26-D12. It is open on both ends, with outer support bands and an inner metal cage, and carries 256 sq ft of flame-retardant 80/20 (cellulose/polyester) media. Specifications: • Size: 13.865" OD x 9.479" ID x 26" long (1426) • Ends: open / open • Media: flame-retardant 80/20, MERV 11, 256 sq ft • Support: outer bands, inner metal cage • Temperature rating: 180°F • Stage: main filter Fits: • Amtech AT / ATV series • RoboVent collectors that use EX-14D26-D12 • Donaldson Torit DFT 80/20 is an economical media for dry, coarser dust such as wood dust and general fabrication dust. For fine weld fume, the same size is available in nanofiber media (Amtech 351D66A2387, MERV 15, SKU 50547). Check your collector's manual for the cartridge count. Replace when pulse cleaning no longer brings the pressure drop back down. In-stock orders placed by noon CT ship the same business day. Not sure it's the right one? Measure your old filter (OD, ID, length and which ends are open) or send us its part number or a photo through the chat button, and we'll confirm the match before you order. 30-day returns.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 26x13.865x9.479 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 180 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 351D66A2391, EX-14D26-D12, CF-14D26, 22611, 10002975, E04192, P196121 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Bands |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 11 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | 80/20 |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 256 |
Fire Retardant Fire Retardant Indicates whether the filter media or construction is treated to resist ignition and slow the spread of fire for improved safety. | Yes |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Size Filter Size The physical dimensions or nominal size of a filter, used to ensure proper fit and compatibility with the equipment. | 1426 |
Filter Ends Filter Ends The design and configuration of a filter’s end caps or closures, which determine how the filter is sealed and mounted in the system. | Open / Open (O/O) |
