Replaces OEM part numbers: 7FP9-0006
Associated Manufacturers
Description

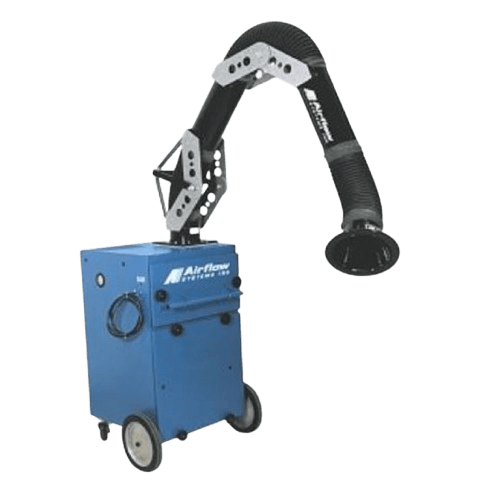

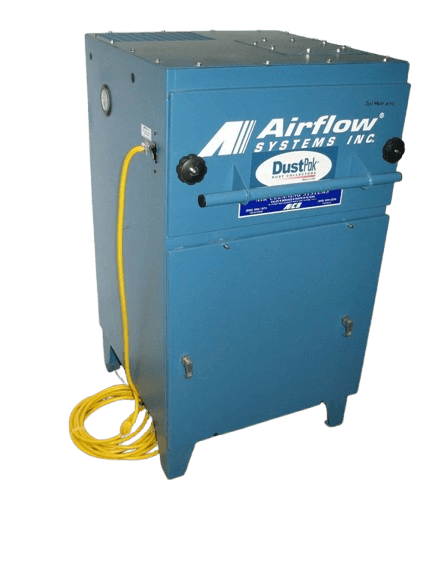

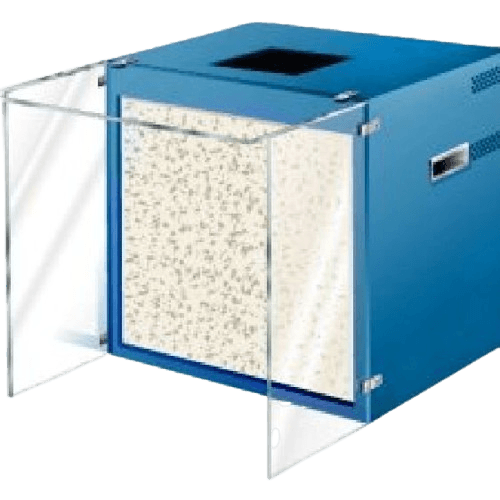

Genuine Airflow Systems 7FP9-0006 box filter: 95% (MERV 14), 18" x 24" x 6", 21 sq ft of fiberglass media in a metal frame. Airflow Systems uses the 7FP9-0006 as the 95% main filter ahead of an internal adsorber, HEPA or DOP filter. It is standard on the Fumebooth-800, in front of its adsorber module. On the Mini-Pac it comes with the internal HEPA, DOP or adsorption option, and on the DT-800 downdraft table with the internal HEPA or adsorption option. Units without those options use a different main filter (a bag on the Mini-Pac, a cartridge on the DT-800), so check which filter your unit has before you order. Specifications: • Part number: 7FP9-0006 • Size: 18 x 24 x 6 in. • Efficiency: 95% (MERV 14) • Media: fiberglass, 21 sq ft • Frame: metal • Temperature rating: 200°F • Stage: main filter Fits: • Airflow Systems Fumebooth-800 • Airflow Systems Mini-Pac (internal HEPA, DOP or adsorption option) • Airflow Systems DT-800 (internal HEPA or adsorption option) • Airflow Systems DS-1 (older style) Seat it fully so the frame seals all around, and replace it when your gauge reaches the change point or airflow drops. Changing it on time also protects the adsorber, HEPA or DOP filter behind it.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 18x24x6 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 200 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FP9-0006 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Metal |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 14 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | Fiberglass |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 21 |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Efficiency (%) Filter Efficiency (%) The percentage of particles a filter can capture from the air, indicating how effective the filter is at removing contaminants. | 95 |
