Replaces OEM part numbers: 7FR0-5016
Associated Manufacturers
Description

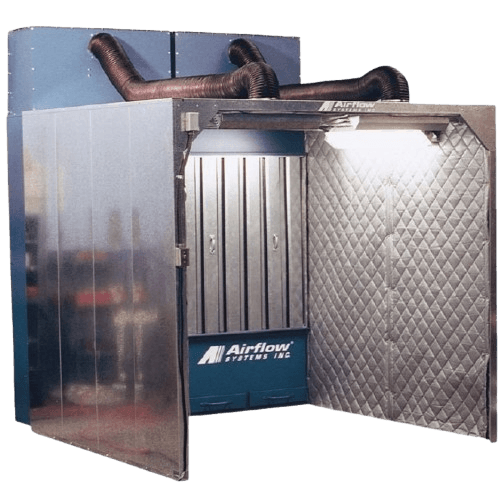

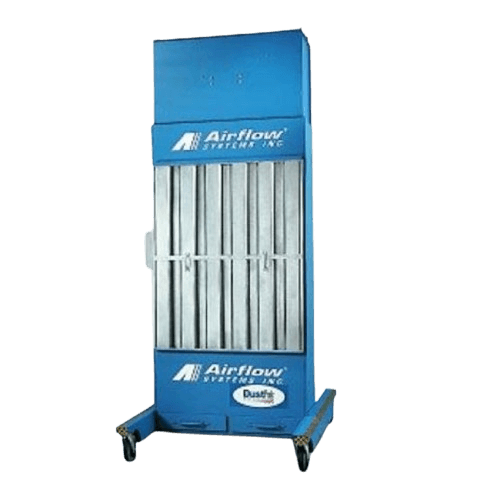

Genuine Airflow Systems 7FR0-5016 cartridge filter (also written 7FRO-5016), with fire-retardant ULTRACLEAN-PLUS media. The 7FR0-5016 is Airflow Systems' double-treated, fire-retardant ULTRACLEAN-PLUS cartridge for its PowerBooth, Dust Control Booth and DT-800 downdraft table. It is a 1612 cartridge, open on one end and closed on the other, with 150 sq ft of MERV 14 media. Specifications: • Part number: 7FR0-5016 • Size: 16" OD x 11.5" long (1612) • Ends: open / closed • Media: ULTRACLEAN-PLUS, double treated, fire retardant, MERV 14, 150 sq ft • Pleat support: glue bead • Temperature rating: 180°F • Stage: main filter Fits: • Airflow Systems PowerBooth • Airflow Systems Dust Control Booth (DCB) • Airflow Systems DT-800 • Airflow Systems PC-1, PC-2, DC-1, DC-2 Seat the open end on the tube sheet and secure the cartridge with the unit's retaining hardware so the gasket compresses evenly; check your manual for the cartridge count. Replace it when filter cleaning no longer brings the pressure drop back down or capture at the booth face drops off.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 11.5x16x9.25 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 180 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FR0-5016 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Glue Bead |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 14 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | ULTRACLEAN-PLUS |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 150 |
Fire Retardant Fire Retardant Indicates whether the filter media or construction is treated to resist ignition and slow the spread of fire for improved safety. | Yes |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Size Filter Size The physical dimensions or nominal size of a filter, used to ensure proper fit and compatibility with the equipment. | 1612 |
Filter Ends Filter Ends The design and configuration of a filter’s end caps or closures, which determine how the filter is sealed and mounted in the system. | Open / Closed (O/C) |
