Replacement for Airflow Systems 7FR0-2016 Cartridge Filter (UltraLife)
Replaces OEM part numbers: 7FR0-2016
Associated Manufacturers
Description

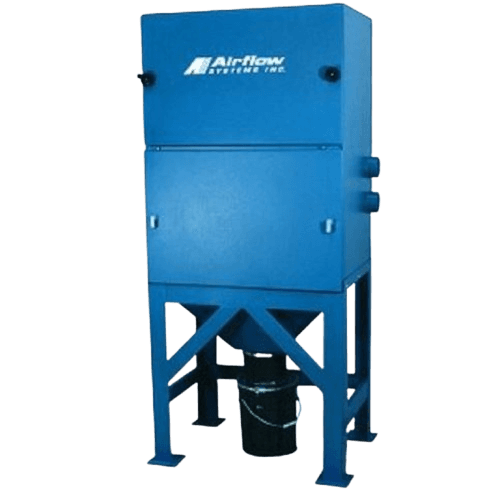

Replacement for Airflow Systems 7FR0-2016: UltraLife fire-retardant cartridge filter, MERV 15, 1612 size, open at one end and closed at the other. It fits the Airflow Systems booths, downdraft tables and portable collectors that take the 7FR0-2016. Airflow Systems' own 7FR0-2016 uses CLEAN-2 media (150 sq ft); this replacement uses UltraLife fire-retardant media (140 sq ft) rated MERV 15, with glue-bead pleat spacing. Specifications: • Size: 16" OD x 9.625" ID x 11.5" long (1612) • Ends: open / closed • Media: UltraLife, fire retardant, 140 sq ft • Efficiency: MERV 15 • Pleat support: glue bead • Temperature rating: 180°F • Stage: main filter Fits: • Airflow Systems PowerBooth, Dust Control Booth (DCB) • Airflow Systems V410 • Airflow Systems DT-800, DT-3000 (older style) • Airflow Systems PC-1/DC-1, PC-2/DC-2 (older style) Also in the 1612 open/closed size: the genuine Airflow Systems 7FR0-5016 ULTRACLEAN-PLUS cartridge (SKU 50701) and, for dry, coarse dust, a lower-cost 80/20 MERV 11 cartridge (SKU 50541). Seat the open end so its gasket compresses evenly, and replace the cartridges when cleaning no longer brings the pressure drop back down or airflow drops.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 11.5x16x9.625 |
Temperature Rating (°F) Temperature Rating (°F) The maximum operating temperature the filter can safely withstand without degrading performance or structural integrity. | 180 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 7FR0-2016 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Glue Bead |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 15 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | UltraLife |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 140 |
Fire Retardant Fire Retardant Indicates whether the filter media or construction is treated to resist ignition and slow the spread of fire for improved safety. | Yes |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Size Filter Size The physical dimensions or nominal size of a filter, used to ensure proper fit and compatibility with the equipment. | 1612 |
Filter Ends Filter Ends The design and configuration of a filter’s end caps or closures, which determine how the filter is sealed and mounted in the system. | Open / Closed (O/C) |
