Replaces OEM part numbers: 147163
Associated Manufacturers
Description

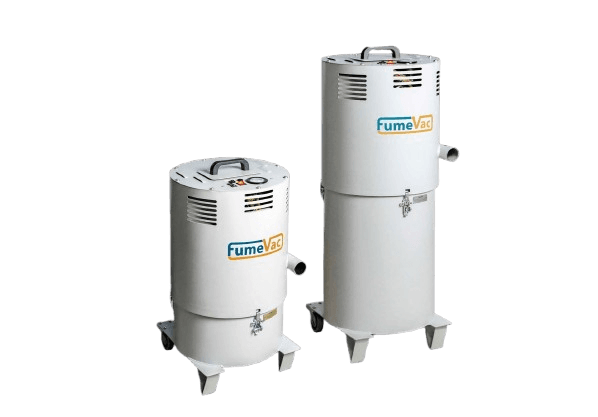

Genuine FumeVac FCA000020 cartridge filter, the standard replacement cartridge for FumeVac 225 series weld fume extractors. A weld fume extractor draws smoke straight from the arc, so the cartridge carries a constant load of fine particulate and can see sparks and hot spatter. This one uses fire-retardant 80/20 media with an expanded metal outer cage. Specifications: • Part number: FCA000020 • Size: 12.74" OD x 8.37" ID x 26" long (1226) • Ends: open / closed • Media: fire-retardant 80/20, MERV 11, 226 sq ft • Outer support: expanded metal • Stage: main filter Fits: • FumeVac 225 series weld fume extractors 80/20 media handles general weld fume and dry particulate at a moderate cost. Seat the gasketed end on the tube sheet and secure the cartridge with the unit's retaining hardware so the gasket compresses evenly. Check your FumeVac manual for the quantity, and replace the cartridge when cleaning no longer brings back suction or smoke shows at the exhaust.
Specifications
Dimensions Dimensions The filter's size in inches (for media rolls, the length is in feet). Panel and bag filter sizes are nominal, so the actual filter can measure slightly smaller. | 26x12.74x8.37 |
Substitute For Substitute For Identifies alternative or equivalent part numbers that this filter can replace in compatible systems. | 147163 |
Outer Shell Outer Shell The external layer or casing of the filter that provides structural support and protects the filter media during operation and handling. | Expanded Metal |
MERV MERV A standardized rating (Minimum Efficiency Reporting Value) that indicates how effectively a filter captures airborne particles, with higher values representing finer filtration. | 11 |
Media Type Media Type The material or composition of the filter media, which determines filtration efficiency, durability, and application suitability. | 80/20 |
Media Surface Footage (Sq') Media Surface Footage (Sq') The total surface area of the filter media, measured in square feet, which affects airflow capacity and dust-holding performance. | 226 |
Fire Retardant Fire Retardant Indicates whether the filter media or construction is treated to resist ignition and slow the spread of fire for improved safety. | Yes |
Filter Stage Filter Stage Where the filter sits in your collector: a pre-filter catches larger particles first, the main filter does most of the filtering, and an after-filter is the final stage. | Main |
Filter Size Filter Size The physical dimensions or nominal size of a filter, used to ensure proper fit and compatibility with the equipment. | 1226 |
Filter Ends Filter Ends The design and configuration of a filter’s end caps or closures, which determine how the filter is sealed and mounted in the system. | Open / Closed (O/C) |
